Wait for Signal Step

Pause a scenario until a manual action is done; event or callback arrives.

What it does

• Suspends scenario execution until a human provides input.
• Validates that input against the Response Schema you configure.
• Returns a structured output object you can use in later steps (for example, steps.wait_for_signal.outputs).

When to use it

• When a manual approval/ reviews are needed (approve, reject, request changes).
• When part of your process is asynchronous and controlled by an external system or person (for example, warehouse confirmation, payment provider callback, marketplace webhook).
• When you want to avoid polling an external system in a loop and instead react to a single, authoritative event.
• When you need to model long‑running business workflows with explicit “waiting” states (for example, “waiting for customer response”, “waiting for fulfillment creation”, “waiting for manual review”).

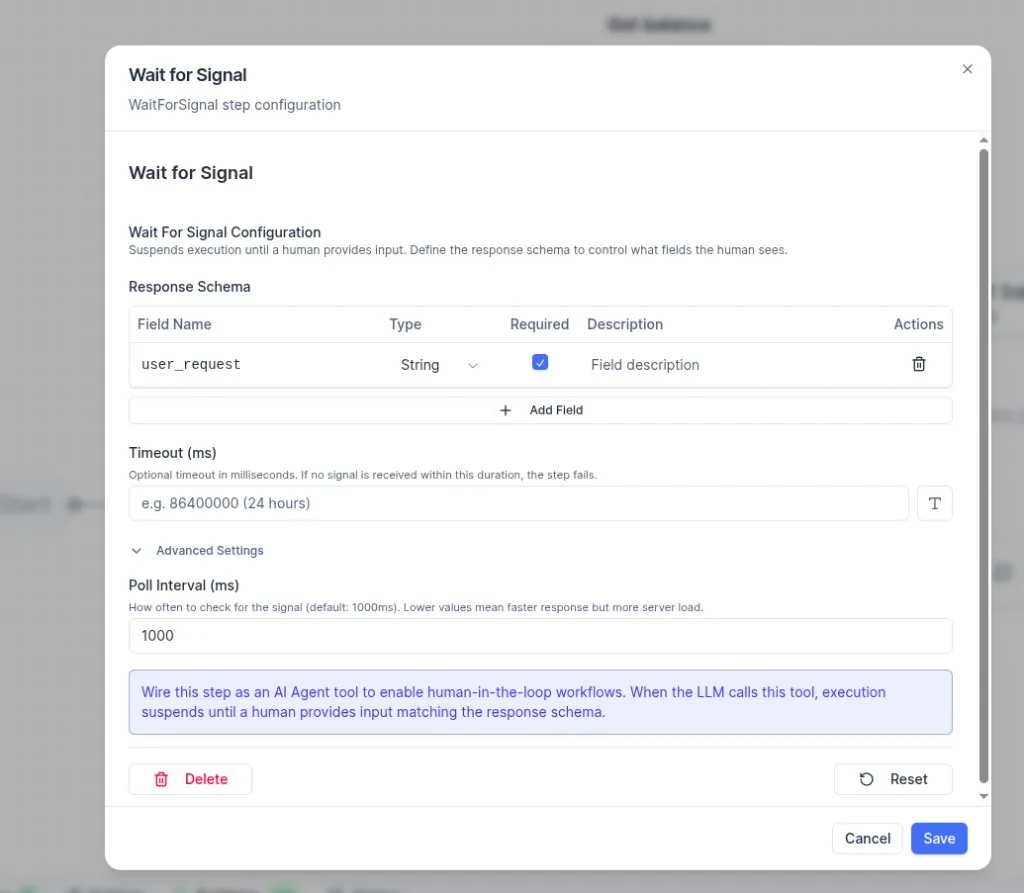

How to configure

• Response Schema

  • Defines what fields the human must submit before the scenario can continue.
  • Use Add Field to add one or more fields. Each field has:
    • Field Name: the key in the output object (for example, user_request).
    • Type: the expected data type (for example, String).
    • Required: whether the field must be provided.
    • Description: helper text shown to the human.
    • Actions: remove a field.

• Timeout (ms) (optional)

  • Maximum time to wait for a response, in milliseconds.
  • If no response is received within this duration, the step fails.
  • Example: 86400000 (24 hours).

• Advanced Settings → Poll Interval (ms)

  • How often the system checks for the response (default: 1000 ms).
  • Lower values can make the response appear faster, but increase server load.

Using it with AI Agents

You can wire this step as an AI Agent tool to enable human-in-the-loop workflows. When the LLM calls the tool, execution suspends until a human provides input that matches the response schema.

Business‑logic considerations

• Idempotency and duplicates

  • External systems may send the same signal more than once; design your flows so that only the first matching signal resumes the waiting instance. Later duplicates are either ignored or logged, not re‑processing the business action.

• Timeout vs. business escalation

  • Timeouts should represent a real business decision point, not just a technical default.
  • For example: “If warehouse has not confirmed within 24h, release reserved stock and notify support” rather than silently continuing.

• Where not to use it

  • Do not use Wait for Signal for short, purely technical delays (like “sleep 5 seconds”) or for steps that can complete synchronously via API.
  • Prefer it when the pause represents a meaningful state in the business process that stakeholders care about.

Typical patterns

• Approval flows

  • Scenario creates a draft action (refund, cancellation, bulk price change), sends a task to an approval system, then uses Wait for Signal until approved / rejected arrives.
  • Downstream branches apply different business rules based on the signal payload.

• Reservation and fulfillment

  • Reserve stock in WMS/ERP, then Wait for Signal confirming success/failure before updating marketplace stock or order status.
  • On timeout, automatically roll back or re‑route orders to another warehouse.

• Async payment and invoicing

  • Initiate payment, then Wait for Signal from the PSP summarizing the outcome.
  • Proceed to invoice and ship only after a positive signal; on failure or timeout, notify finance or reverse provisional actions.

• External long‑running jobs

  • Start an export, sync, or reconciliation job in an external system, store its job ID, then Wait for Signal with that job ID.
  • When the job finishes, the signal resumes the scenario, which continues with post‑processing or reporting.
